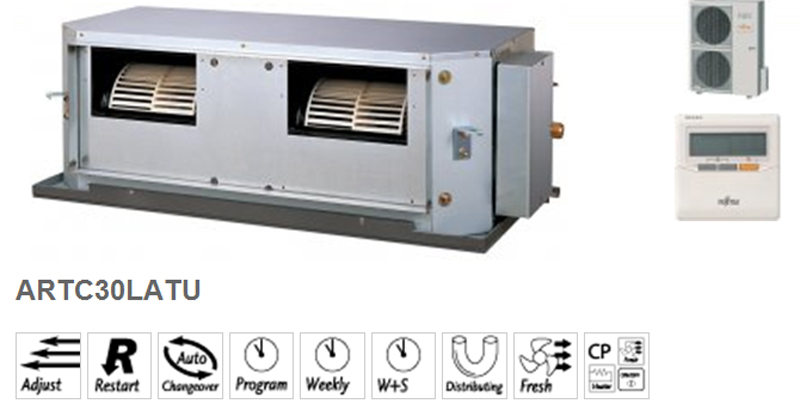

Fujitsu ARTG30 LATU
Brand: FUJITSUModel: ARTC30LATUCapacity in kilowatts: 8.8 (cool), 10.0 (heat)E.E.R./C.O.P. 2.67/3.61
click photo to zoom
| Specifications: |
| •Model No. - Indoor : ART30LUAK - 8.8kW(C)/9.2kW(H)/ ARTC36LATU - 10.0kW(C)/10.0kW(H) / ART45LUAK - 12.5kW(C)/14.0kW(H) / ARTC54LATU - 14.5kW(C)/16.0kW(H) •Model No. - Outdoor: AOT30LMBDL / AOT36LMADL / AOT45LJBYL / AOT54LJBYL •Reverse Cycle System: Yes •Optional Simple Wired RC: UTB-TPB •Optional Remote Sensor: UTD-RS100 •Cooling Capacity (Watts): 8800 / 10000 / 12500 / 14500 •Cooling Capacity (BTU/h): 30000 / 34100 / 42700 / 49500 •Range (Watts): 2700-9800 / 2700-10500 / 3600-14000 / 6400-15300 •Range (BTU/h): 9200-33500 / 9200-36000 / 12300-47800 / 21900-52200 •Heating Capacity (Watts): 9200 / 10000 / 14000 / 16000 •Heating Capacity (BTU/h): 31400 / 31400 / 47800 / 54600 •Range (Watts): 3000-11000 / 3000-12500 / 4700-18000 / 6800-20000 •Range (BTU/h): 10200-37600 / 10200-42700 / 47800-61500 / 23200-68300 •Power Supply (Watts): 240 •Phase-Frequency (Ph - Hz): 1-50 •Power Supply Attachment: Outdoor •Running Current, Cooling (Amps): 13.8 (4.6-17.3) / 16.7(4.6-17.6) / 18.1(7.1-21.7) / 23.5 (7.1-25.3) •Running Current, Heating (Amps): 10.7 (4.3-17.3) / 11.7 (4.3-17.6) / 16.0 (6.3-20.1) / 19.8 (6.3-25.3) •Input, Cooling (Watts): 3300 (1080-4150) / 4000 (1080-4200) / 4300 (1700-5200) / 5570 (1700-6060) •Input, Heating (Watts): 2550 (1000-4150) / 2800 (1000-4200) / 3800 (1500-4800) / 4700 (1500-6060) •Moisture Removal (l/hr): 3 / 4 •Fan Speed: 3 (ARTC36LATU) / 4(ARTC54LATU) •E.E.R. - Cooling: 2.67 / 2.6(ARTC54LATU) •C.O.P. - Heating: 3.61 / 3.4(ARTC54LATU) •Star Rating - Cooling: 3 / 3/ 4 / 3 •Star Rating - Heating: 5 / 5 / 5.5 / 4.5 •Fan Speed: 3 •Ex Static Pressure Range (Pa): 100 to 200 / 100 to 250 •Air Circulation, High (l/s): 694@100Pa / 972@100Pa •Compressor Type: DC Twin Rotary(ART30LUAK / ARTC36LATU) / DC Scroll (ART45LUAK / ARTC54LATU) •Dimensions - Inside Unit (HxWxD mm): 400x1050x500 •Weight - Inside Unit (kg): 45(ART30LUAK / ARTC36LATU)/ 50 (ART45LUAK / ARTC54LATU) •Dimensions - Outside Unit (HxWxD mm): 900x900x350 (ART30LUAK / ARTC36LATU) / 1290x900x330 (ART45LUAK / ARTC54LATU) •Weight - Outside Unit (kg): 70(ART30LUAK / ARTC36LATU) / 105 (ART45LUAK / ARTC54LATU) •Duct Work Plenum Size, Supply (mm): 850 x 295 •Duct Work Plenum Size, Return (mm): 865 x 325 •I.U. Sound Pressure Level (dBA@1mtr): 45 / 45 / 49 (ART45LUAK / ARTC54LATU) •O.U. Sound Pressure Level (dBA@1mtr): 53 / 53 / 54 (ART45LUAK / ARTC54LATU) •O.U. Sound Power Level (dBA): 65 •Refrigerant Type: R410A •Connection Pipe Sizes, Gas (mm): 15.88 •Connection Pipe Sizes, Liquid (mm): 9.52 •Pre Charged Length (Metre): 10 (ART30LUAK / ARTC36LATU) / 20 (ART45LUAK / ARTC54LATU) •Minimum Pipe Length (Metre): 5 •Maximum Pipe Length (Metre): 30(ART30LUAK / ARTC36LATU) / 70 (ART45LUAK / ARTC54LATU) •Maximum Pipe Height (Metre): 20(ART30LUAK / ARTC36LATU) / 30 (ART45LUAK / ARTC54LATU) •Pipe Connection Methods: Flare •Outdoor operating Temp, Cooling Degrees C: 0 to 43 (ART30LUAK / ARTC36LATU) / -15 to 43 (ART45LUAK / ARTC54LATU) •Outdoor operating Temp, Heating Degrees C: -10 to 21 (ART30LUAK / ARTC36LATU)/ -15 to 24 (ART45LUAK / ARTC54LATU) Features: •Automatic Air Flow Adjustment •Auto Restart •Auto-Changeover •Program Timer •Weekly Timer •Weekly + setback Timer •Connectable Distributing Duct •Fresh air intake •Control Port •Ducted Air Conditioning •Wall Hung Splt Systems |
