FUJITSU ASTG09LVCC 2.5kW/3.4kW INVERTER REVERSE CYCLE SPLIT AIR CONDITIONER

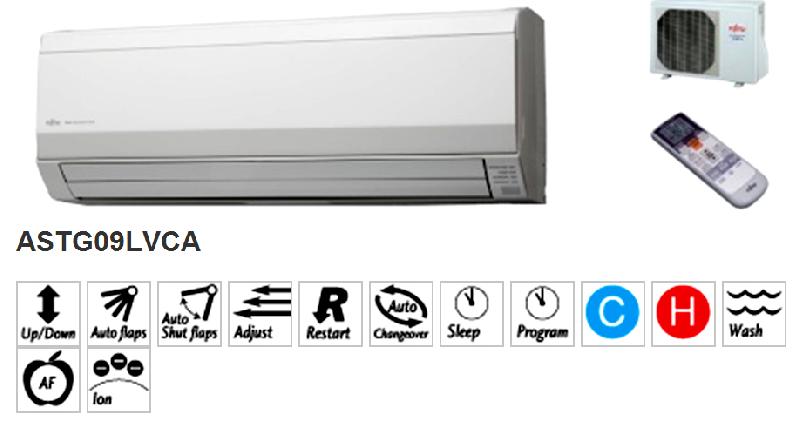

click photo to zoom

Specifications:

Reverse Cycle System: Yes
Cooling Capacity (Watts): 2500 / 3500 / 5000
Cooling Capacity (BTU/h): 8500 / 11900 / 17100
Range (Watts): 500-3300 / 900-4000 / 900-5800
Range (BTU/h): 1700-1130 / 3100-13600 / 3100-19800
Heating Capacity (Watts): 3400 / 4800 / 6000
Heating Capacity (BTU/h): 11600 / 16400 / 20400
Range (Watts): 500-4000 / 900-5600 / 1050-8100
Range (BTU/h): 1700-13600 / 3100-19100 / 3600-27600
Power Supply (Volts): 240
Phase-Frequency (Ph - Hz): 1-50
Power Supply Attachment: Outdoor
Plug Size (If Applicable): NA
Running Current, Cooling (Amps): 2.8 / 4.2 / 6.5
Running Current, Range (Amps): Max 6.0 / 6.5 / 9.5
Running Current, Heating (Amps): 3.5 / 5 / 6.3
Running Current, Range (Amps): Max 7.5 / 9.0 /13.5
Input, Cooling (Watts): 580 / 920 / 1530
Input, Range (Watts): 250-1240 / 250-1420 / 180-2030
Input, Heating (Watts): 730 / 1110 / 1490
Input, Range (Watts): 250-1560 / 250-2000 / 170-3190
Moisture Removal (l/hr): 1.3 / 1.8 / 2.6
E.E.R. - Cooling: 4.31 / 3.8 / 3.27
C.O.P. - Heating: 4.66 / 4.32 / 4.03
Star Rating - Cooling: 4 / 3 / 2
Star Rating - Heating: 4.5 / 4 / 3.5
Fan Speed: 4
Air Circulation, High (l/s): 219 / 225 / 266
Compressor Type: Rotary
Dimensions - Inside Unit (HxWxD mm): 293x790x225
Weight - Inside Unit (kg): 9.5
Dimensions - Outside Unit (HxWxD mm): 540x660x290
Weight - Outside Unit (kg): 26 / 35 / 40
I.U. Sound Pressure Level (dBA@1mtr): 41 / 42 / 46
O.U. Sound Pressure Level (dBA@1mtr): 47 / 48 / 52
O.U. Sound Power Level (dBA): 64 / 66 / 69
Refrigerant Type: R410A
Connection Pipe Sizes, Gas (mm): 9.52 / 12.7
Connection Pipe Sizes, Liquid (mm): 6.35
Pre Charged Length (Metre): 15
Minimum Pipe Length (Metre): 3
Maximum Pipe Length (Metre): 20
Maximum Pipe Height (Metre): 15
Pipe Connection Methods: Flare
Outdoor operating Temp, Cooling Degrees C: 10 to 43
Outdoor operating Temp, Heating Degrees C: -15 to 24
